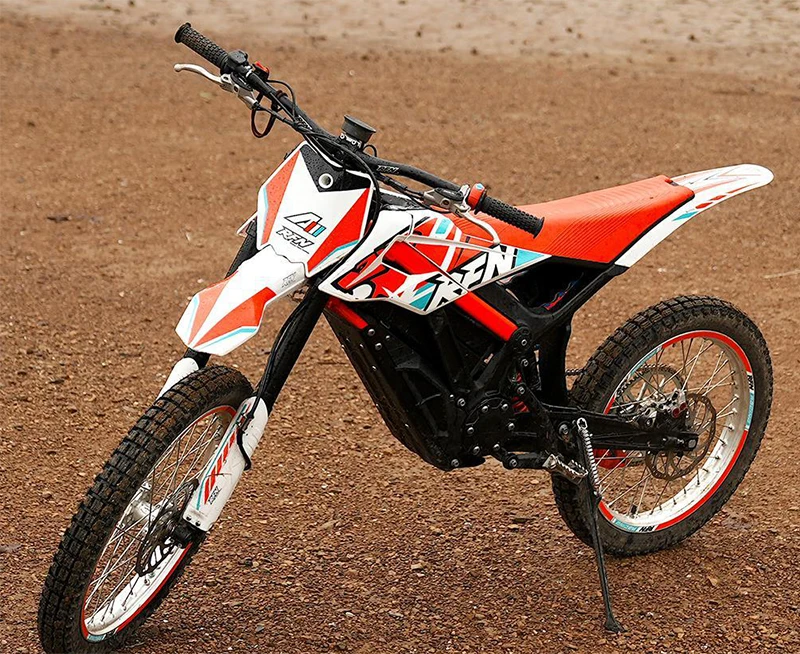

2023 factory direct high-speed electric off road dirt motorcycle with Certification
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
$3,550.00
/pc
Refund:
Share:
Top Selling Products
SPECIFICATION | ||

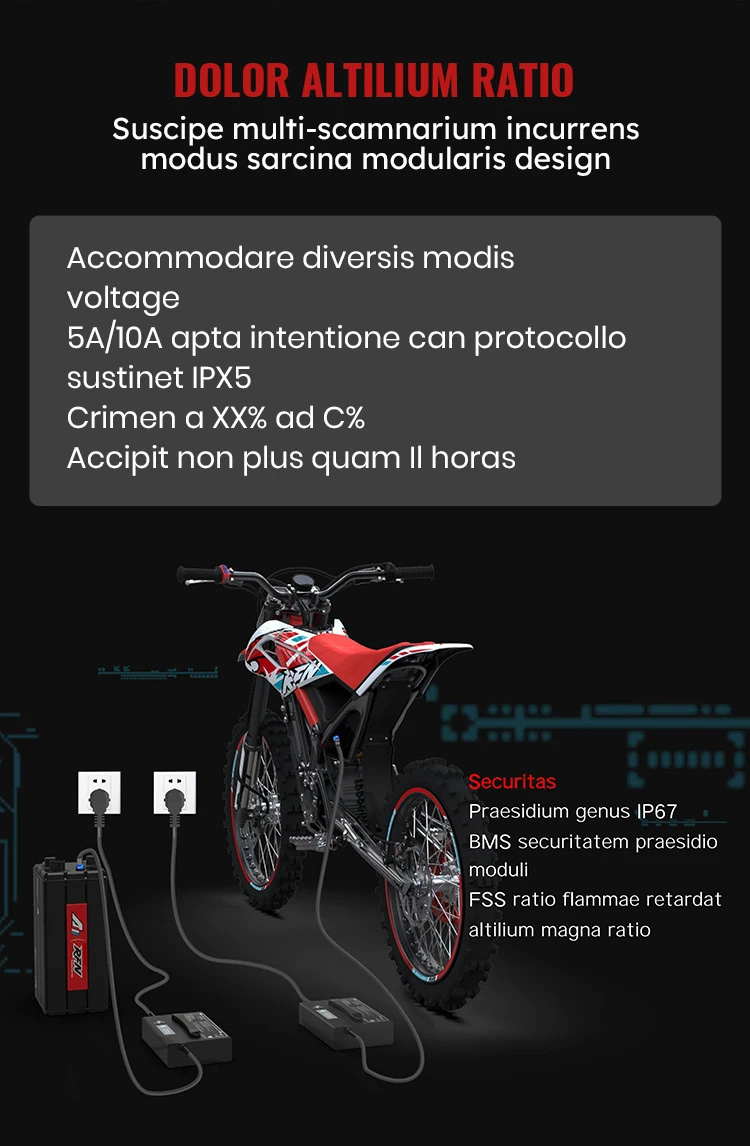

Battery | 74V / 2590 Kwh, LG Premium 21700 lithium cells, removable, can be charged in bike or separately. | |
Brakes | Front and Rear 4-piston hydraulic disc, 210 mm | |
Charging | 2-3 h with Quickcharge Function | |
Controller | Sine wave, Best-in-class power density and state-of-the-art motor control algorithms. | |
Waterproof | IP67 | |

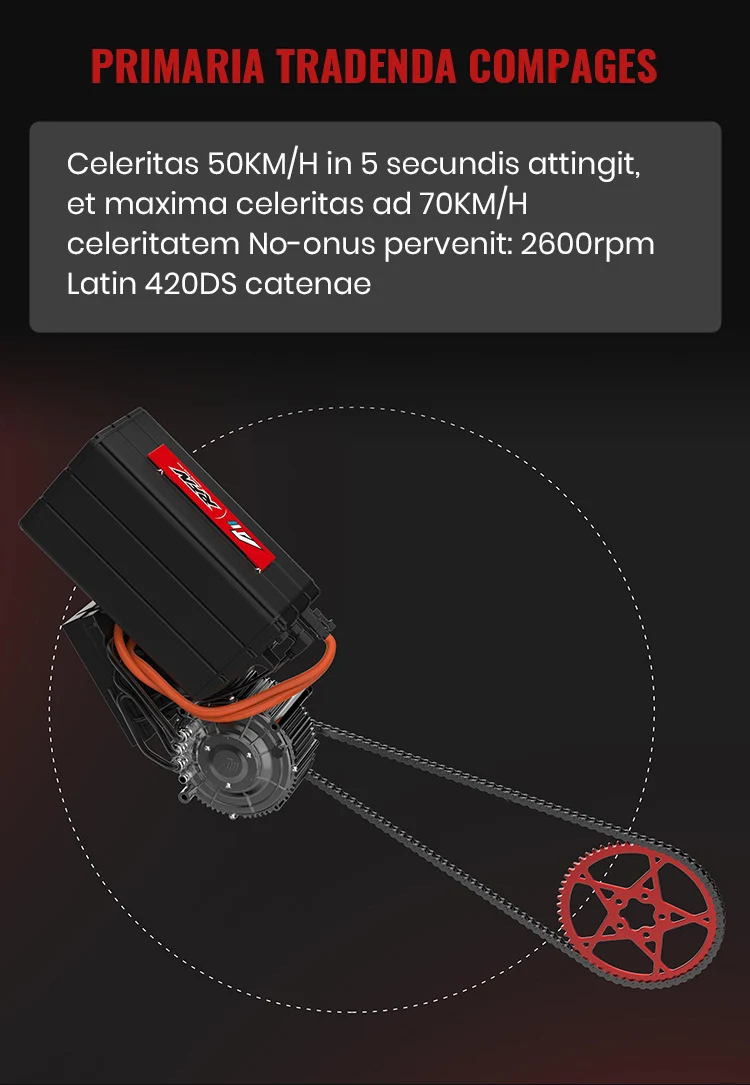

DRIVETRAIN | ||

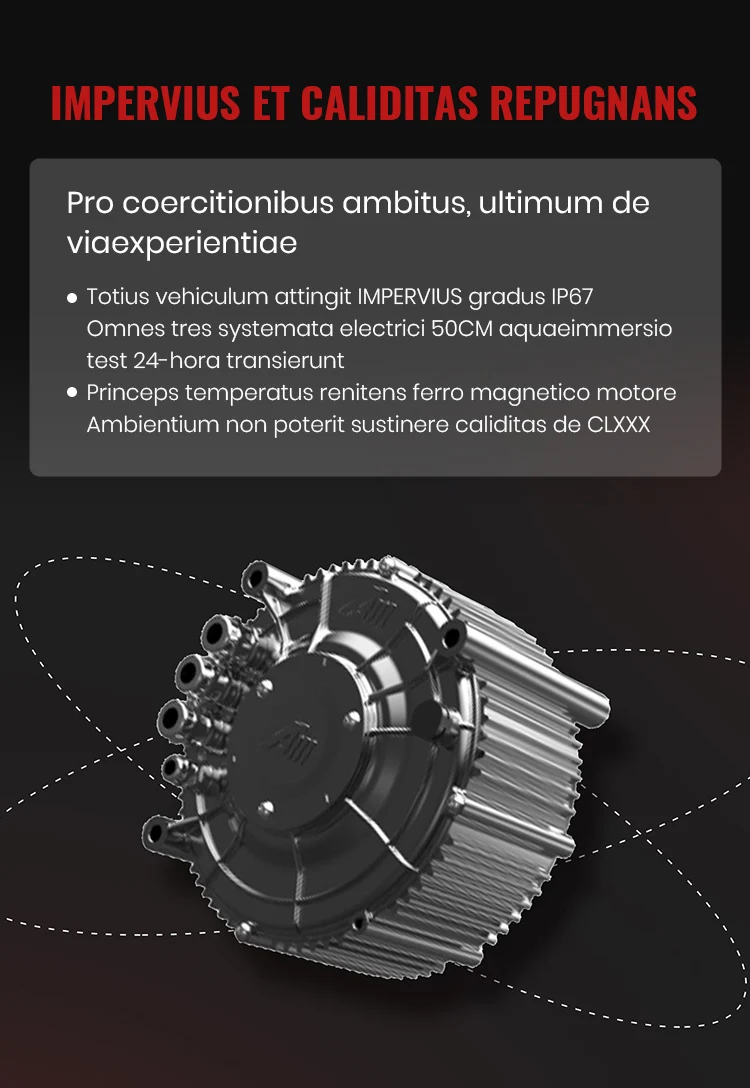

Electric motor | Air cooled Permanent Magnet Synchronous Motor, energy regeneration function, Direct drive, 420 chain with DX | |
Sprocket | 13-58 T | |
Rated power | 5 kW | |
Peak power | 12.5 kW | |
Max Torque of motor | 58 N·m | |
Max Torque of rear wheel | 270 N.m | |

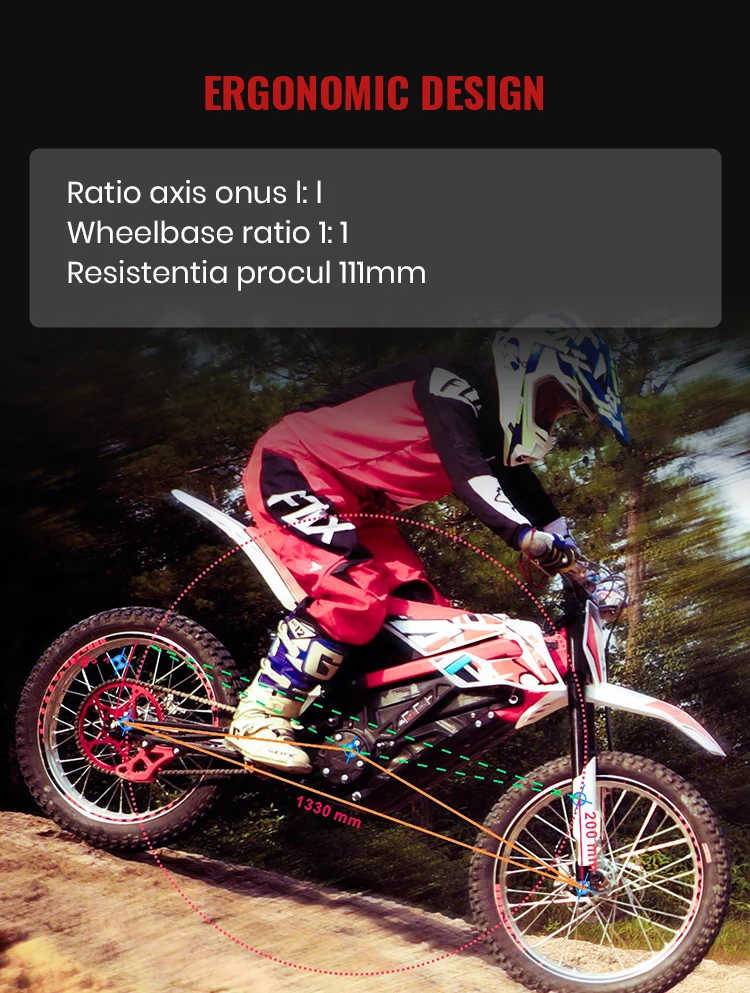

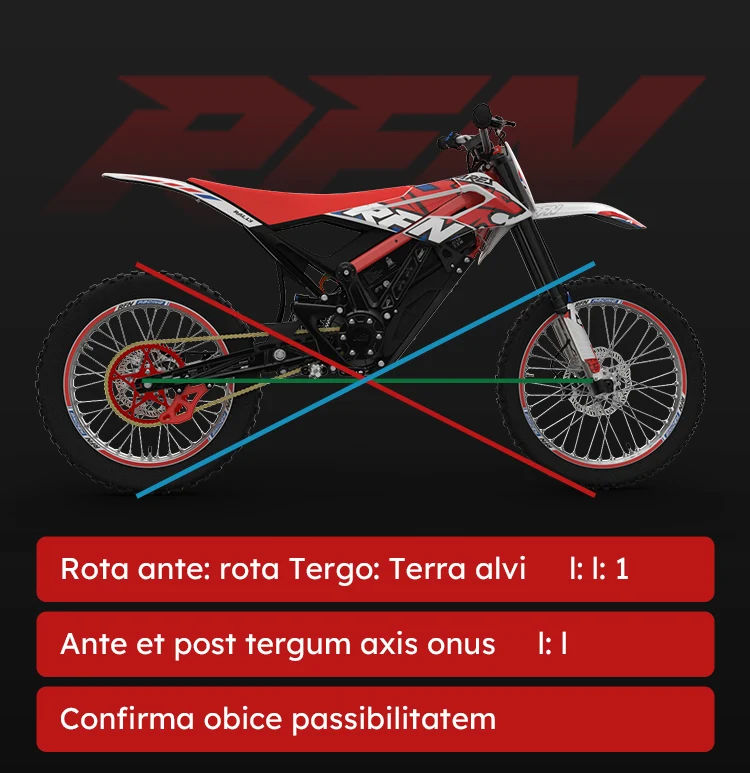

DIMENSIONS | ||

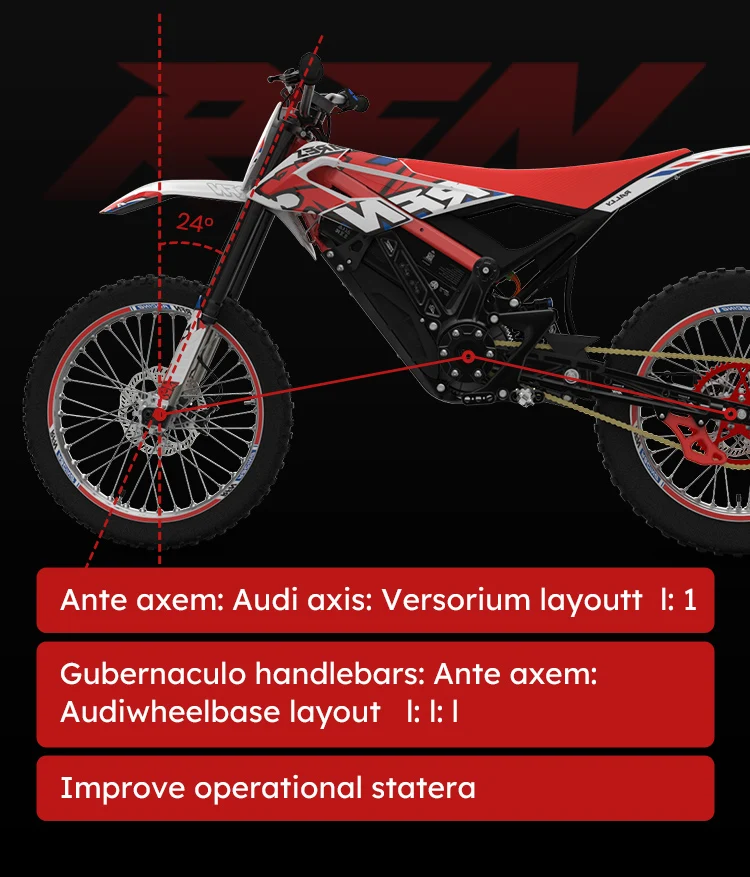

Fork angle | 24 ° | |
Ground clearence | 340 mm | |
Offset | 15mm in triple clamps, 45 mm in forks | |
Seat height | 860 mm | |
Trail | 111 mm | |
Wheel base | 1330 mm | |
BODYWORK | ||
Fenders & Bodywork | PP/ABS plastic | |

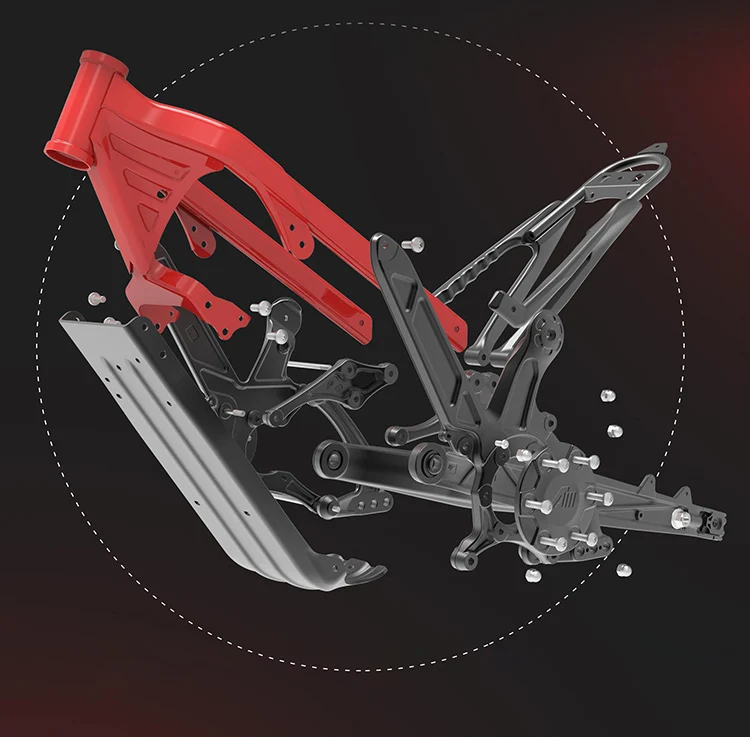

Frame | 6082 aluminum extruded, forged, CNC machined and steel frame | |
Front suspension | Upside Down, 200 mm travel, Fully adjustable | |

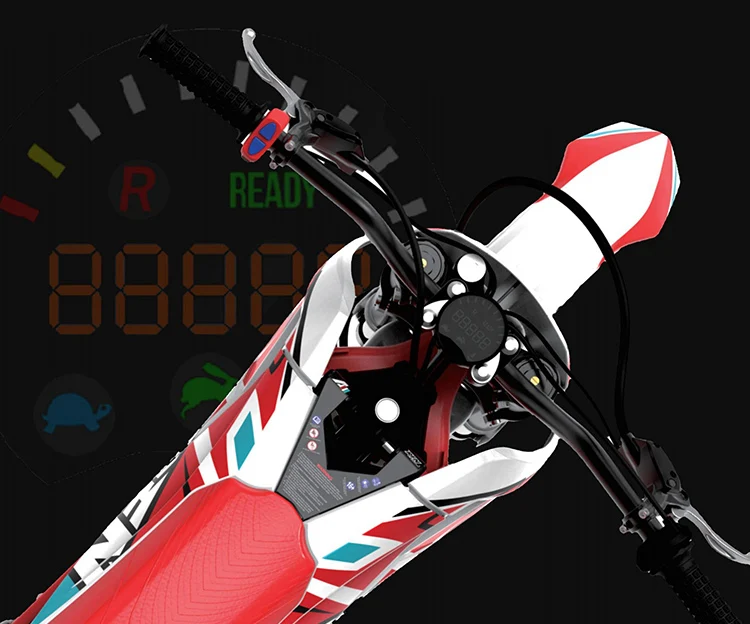

Handlebar | High rise 6061 aluminium, 760 mm length | |
Rear suspension | Mono-Shock, 74 mm travel, adjustable | |
Regulatory Cetificate | CE | |
RIDE MODES | ||
Mode 1 | Tortoise mode: The ultimate mode energy conservation exploration. Limited to 15 mph with 3.5 h battery range. | |
Mode 2 | Rabbit mode: Enduro or active trail riding. 1-2 h riding time. | |
Mode 3 | Rocket mode: Track and race mode, maximum torque and speed, riding time up to 1 h. | |
Mode 4 | Reverse mode: Limited to 6 mph. | |

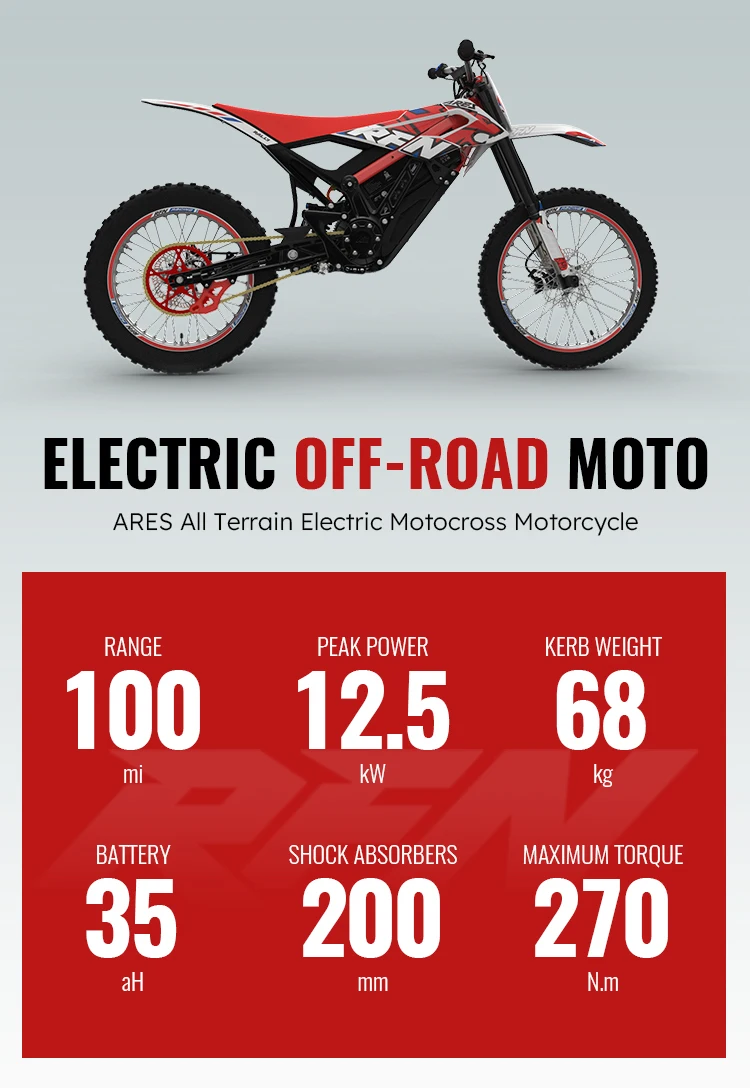

SPEED & RANGE | ||
Range | 100 mi (Test data Load: 75 Kg, 12.5 mph uniform speed, ambient temperature: 25 °C, flat pavement, standard tyres, standard tyre pressure) | |
Top speed | 55 mph (depending on gearing and conditions) | |
WEIGHT | ||
Net weight of Battery | 15 kg | |
Net weight of whole bike (Including Battery) | 68 kg | |
Maximum load | 120 kg | |
WHEELS & TYRES | ||
Hubs | Forged and CNC aluminium RFN hubs with 20 mm axle. | |
Rims | F 19"/ R 18" (Motorcycle standard) re-inforced, triple chamber, 7050 aluminium. | |
Tyres | F CST CM721 70/100-19 off-road , R CST CM722 90/100-18 off-road | |

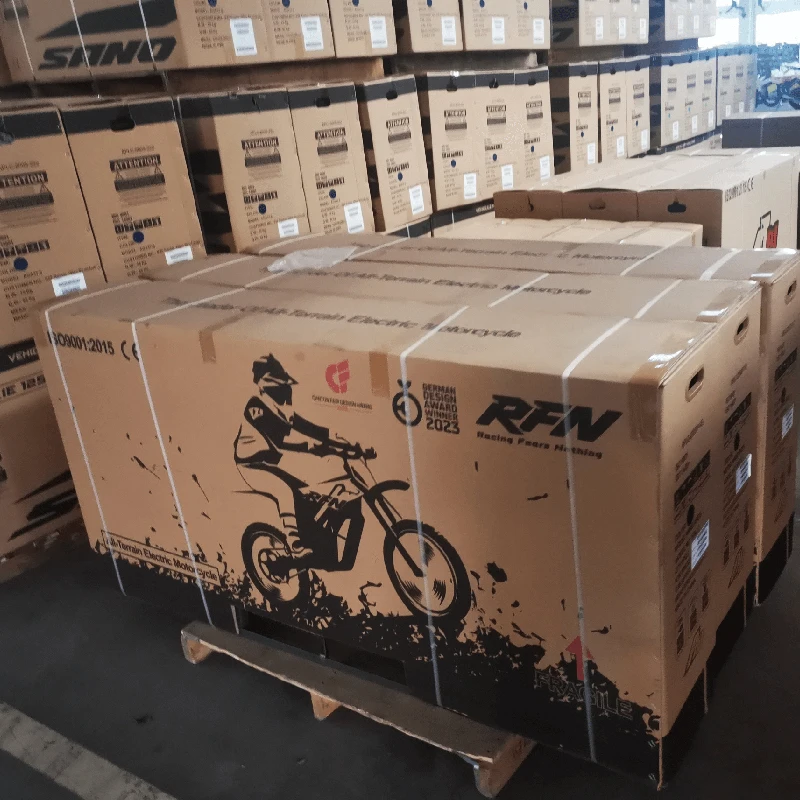

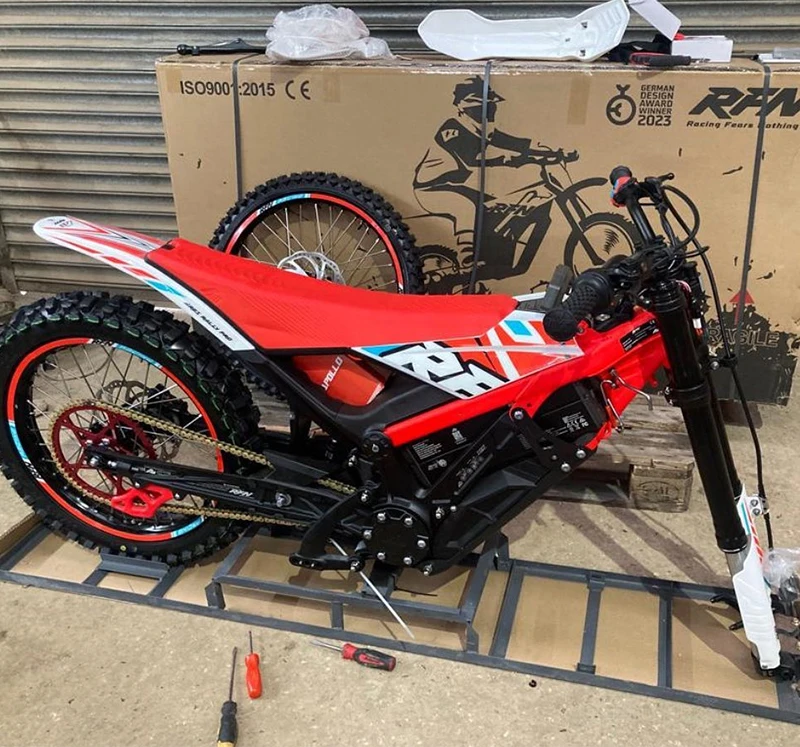

Product packaging
