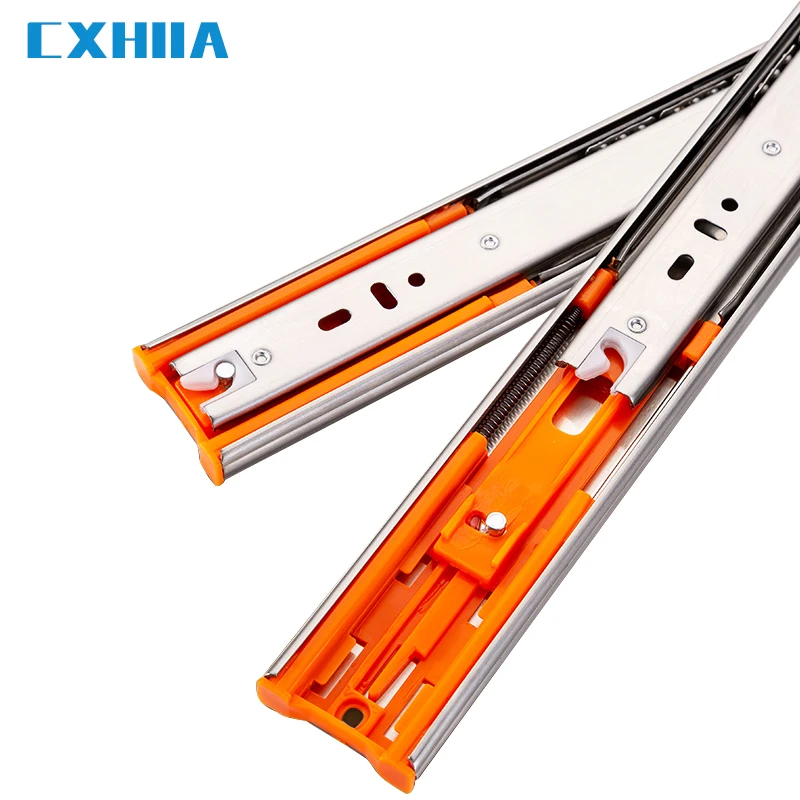

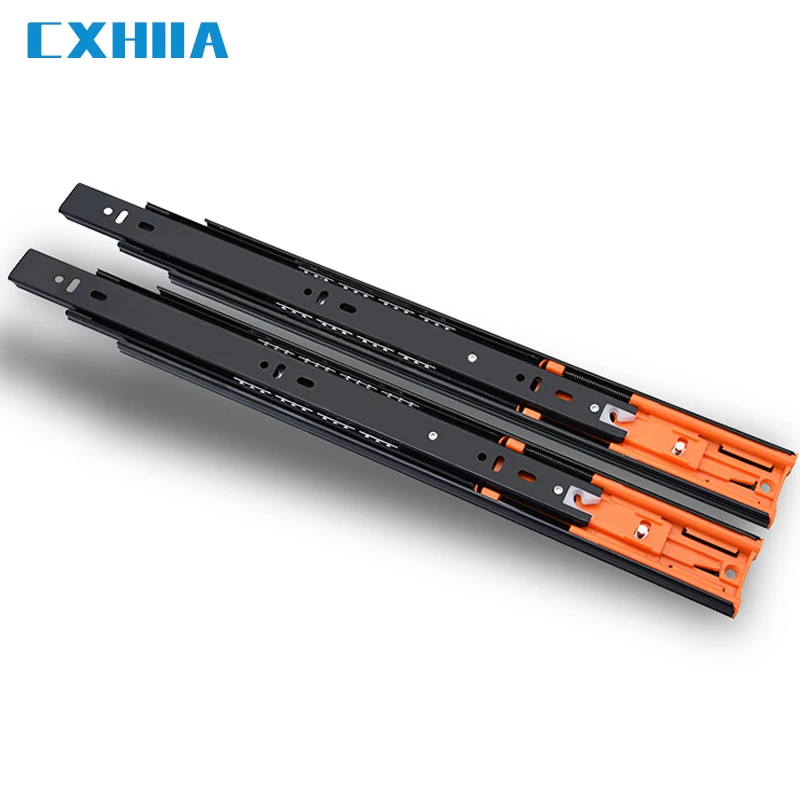

CXHIIA With Lock 500LBS Heavy Duty Drawer Slides Sliding Drawer Rail Ball Bearing Full Extension Heavy Loading 3-Fold Guide Rail
Inhouse product
CXHIIA Hot product recommendation
This link is 76mm with lock, if you need it without lock, please contact customer service to send the link
Understand product parameters
【Brand】CXHIIA
【Size specifications】8 inch -60 inch with lock (customizable for more than 60 inches)
【Name】Heavy drawer slide 【With lock】
【Surface treatment]】Sealing blue (with anti-rust and anti-oxidation effect)
【Width】76MM
【Thickness】25MM
【Pull open method】 Three-section full extension
【Installation clearance】19mm+-0.5
【Maximum load】220KG
【Material】Cold rolled steel
【Installation method】Side installation
【Plate thickness】 Outer rail -2.5mm, middle rail -2.5mm, inner rail -2.5mm
【Scope of application】 Cabinet warehouse cabinets, financial equipment, industrial drawer cabinets, motorhomes
There are two options: lock and unlock
There are two options: lock and unlock (this link is a lock, if you don't need to lock, please contact customer service to send the link)
FAQ
Q1:Are you manufacturer or trading company?
A1:We are manufacturer& trading company.We have our own factories to produce different slide rail and hinge products.
Q2:What is terms of payment ?
A2:30% T/T in advance, balance before shipment.
Q3:How do I know if my order has been received?
A3:When we get your order by mail or fax, we will sign back the PI to you by mail or fax. We'll also email you to confirm we have your order.
Q4: Can I have a sample of to check?
A4:Sure,we can send you the samples for free,but you need to pay the freight,we can return it to you when the order is confirmed.
Q5:How long is your delivery time?
A5:7-15 days for samples; 15-30 days for batch processing.
