433MHz Universal Wireless Remote Control AC 110V 220V 10Amp 2200W 4CH Relay Receiver Module RF Switch for Gate Garage opener
Inhouse product
433MHz Universal Wireless Remote Control AC 110V 220V 10Amp 2200W 4CH Relay Receiver Module RF Switch for Gate Garage opener
*** Tips:If you need us to set up the operating mode , please leave a message on the order ***
Product Application Area
Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device
Package include
Receiver module( include Shell )

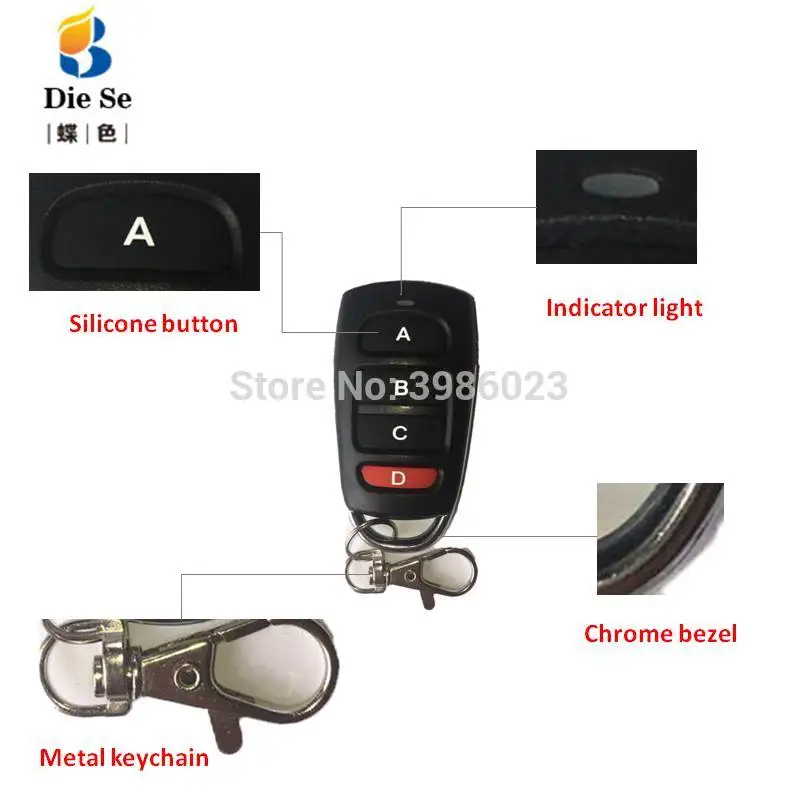

Remote Control (include battery )
Product manual
Technical Data
Electronics Character:
Working Voltage:AC 85V~250V
Input Voltage:1V~250V
Output Voltage:1V~250V
Max current : 10Amp
max load: 2200W
Quiescent Current:5mA
Working Frequency:433Mhz
Receiving Sensitivity:-104dBm
Function option:Momentary/Toggle/Latched
Modulation Mode:ASK
Matching Mode: Intelligent Learning code
Output Mode:Dry contact /Voltage output
Shell:Yes
Working temperature : -30~+80

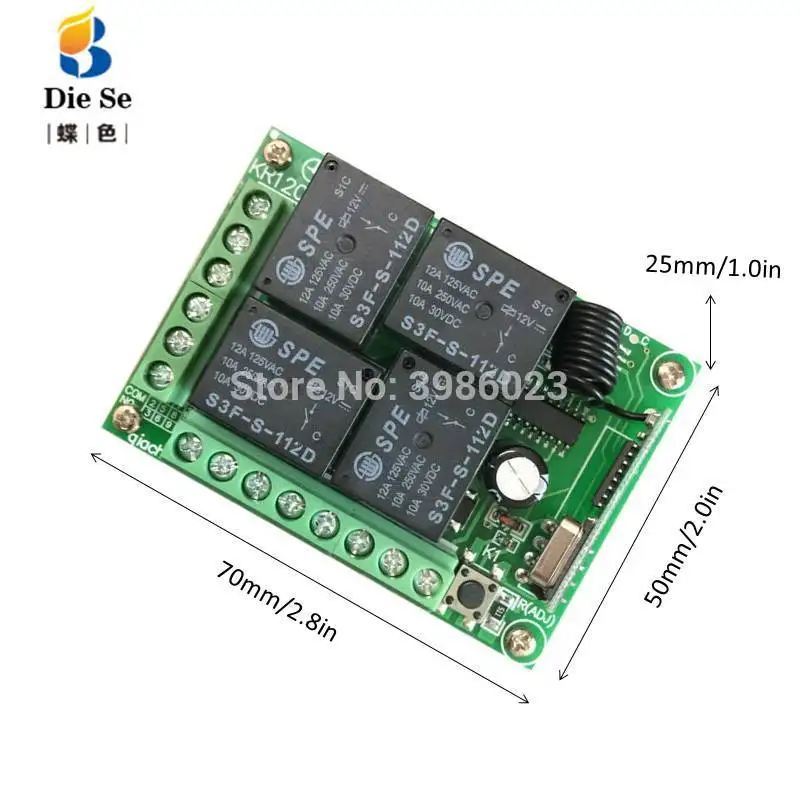

PCB dimension:68.2x48.2(mm)
+V :Positive pole input
GND :Negative pole input
Relay 1/2/3/4
1. Normal Closed of relay (NC)
2. Common of relay (COM)
3. Normal Open of relay (NO)

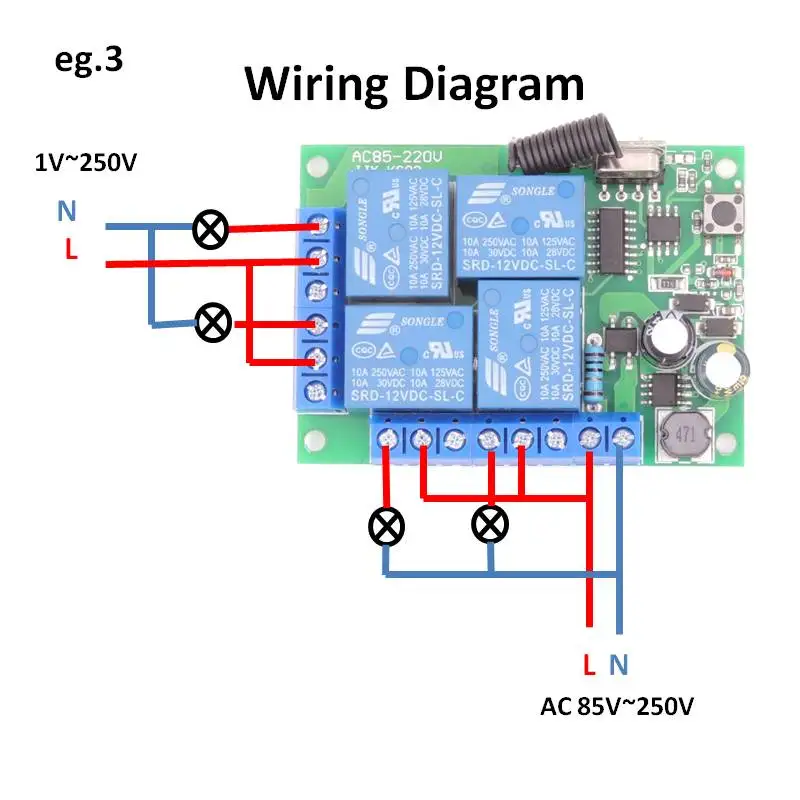

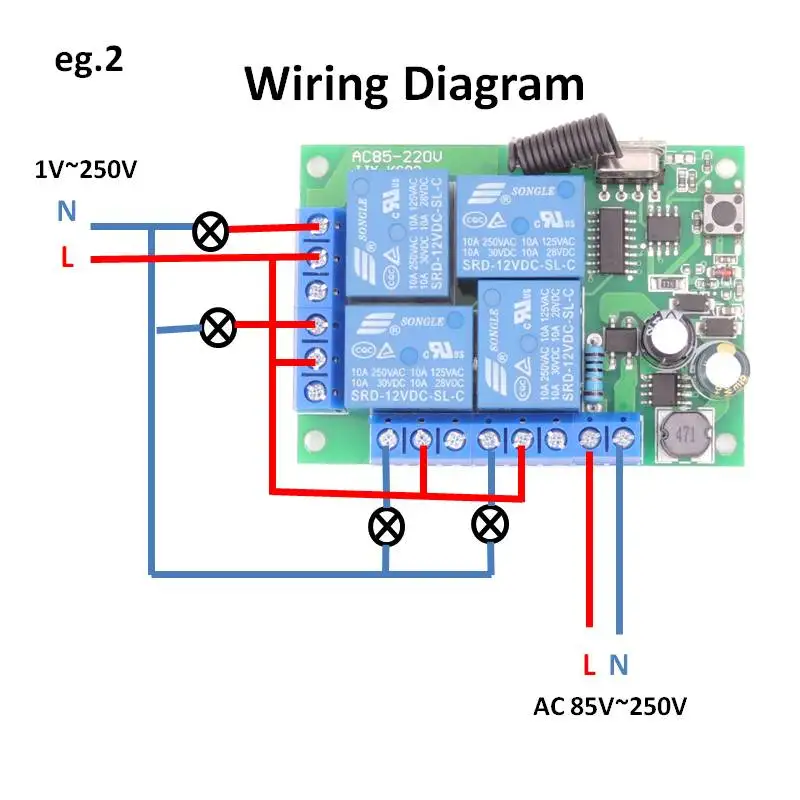

Circuit Connection modes
Operating Mode
Remote mode 1: Momentary Mode
Press and hold on one button -> ON; Release the button -> OFF
Remote mode 2: Toggle Mode
Press one button -> ON; Press the same button again -> OFF
Remote mode 3: Latched Mode
Press one button "A"-> ON; Press another button "B" -> OFF(another relay turn to switch-on)

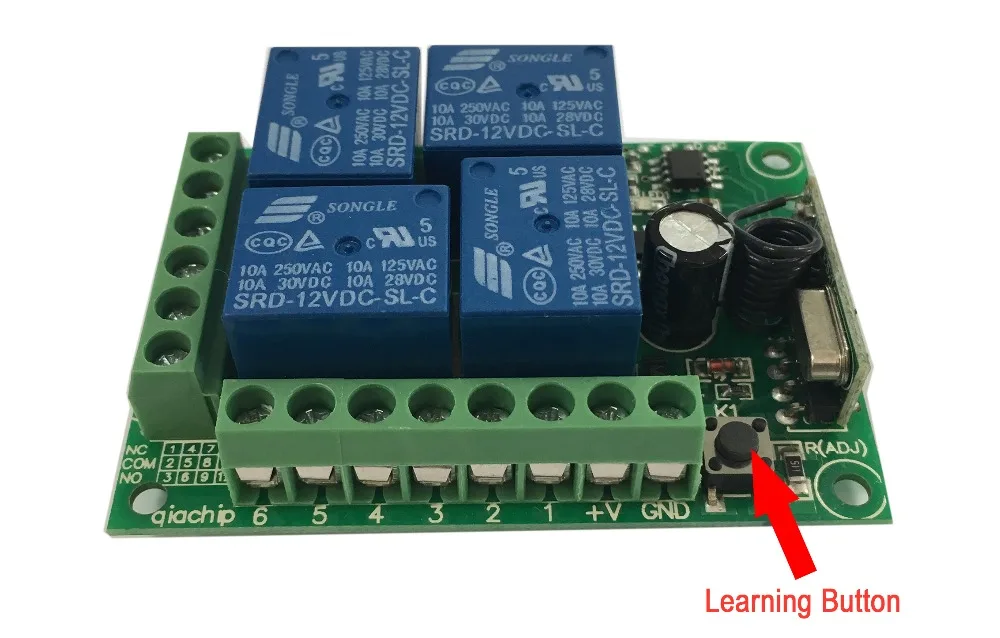

Set Up
- Part 1: Delete the existing data about remote mode
- Part 2:
