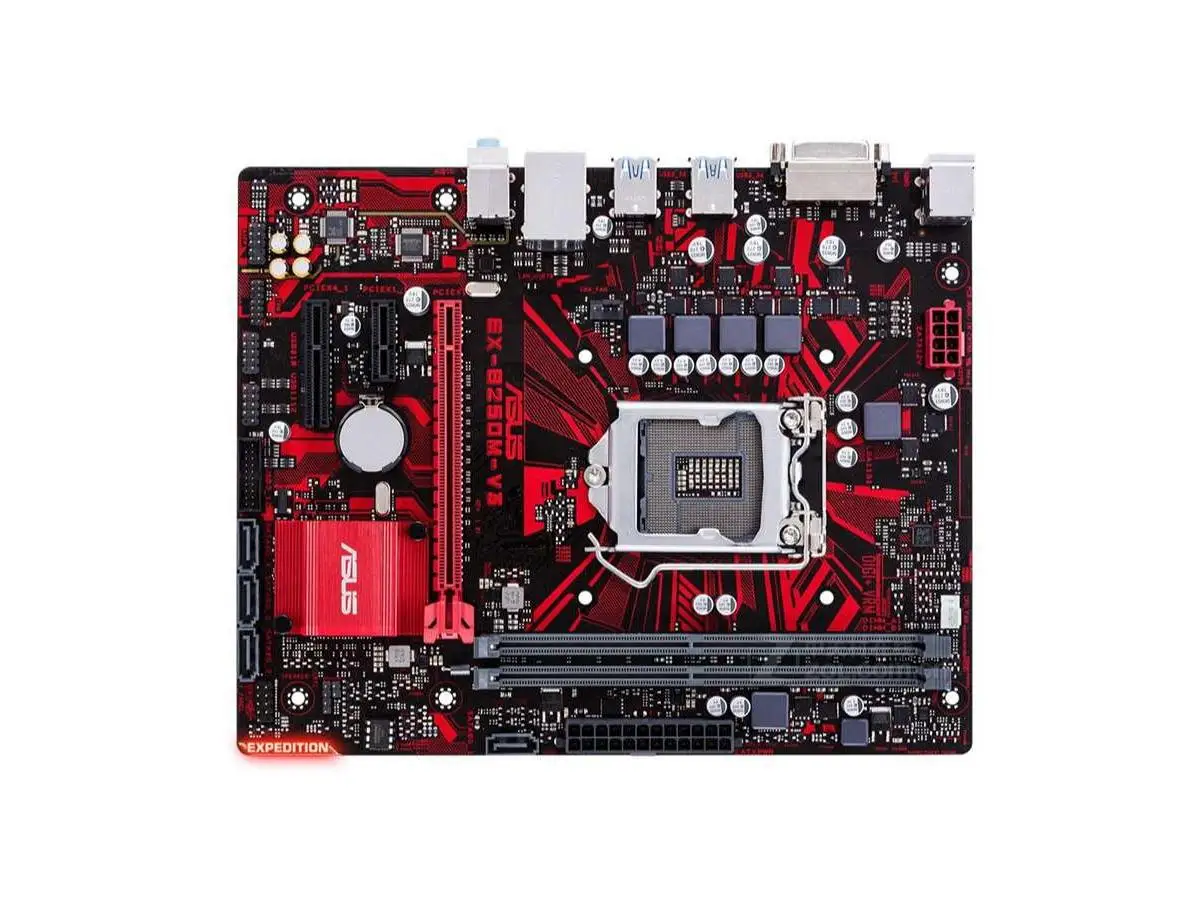

ASUS EX-B250M-V3 For Intel B250 B250M DDR4 32GB Motherboard LGA 1151 i7/i5/i3 USB3.0 SATA3 Used
Inhouse product
Motherboard chip
Integrated chip sound card/network card
Main chipset Intel B250
Chipset description using Intel B250 chipset
Display chip CPU built-in display chip (requires CPU support)
Audio chip integration Realtek ALC887 8-channel audio chip
Network card chip board Realtek RTL8111H Gigabit network card
Processor specifications
CPU type 7th/6th generation Core i7/i5/i3/Pentium/Celeron
CPU slot LGA 1151
CPU Description Supports Intel 14nm Processors
Memory specifications
Memory Type 2 × DDR4 DIMM
Maximum memory capacity 32GB
Memory Description Supports Dual Channel DDR4 2400MHz Memory
Storage expansion
PCI-E standard PCI-E 3.0
PCI-E slot 1 × PCI-E X16 graphics card slot, 1 × PCI-E X4 slot, 1 × PCI-E X1 slot
Storage interface 4 × SATA III interface
I/O interface
USB interface 6 × USB 3.0 interface (2 built-in+4 backplane), 6 × USB 2.0 interface (4 built-in+2 backplane)
Video interface 1 × DVI interface
Power interface: one 8-pin, one 24-pin power interface
Other interfaces 1 × CPU fan power socket, 1 × Chassis Fan Interface, 1 × AAFP front audio interface, 1 × Internal speaker connector, 1 × System panel interface, 1 × RJ45 network interface, 1 × TPM interface, 3 × Audio interface, 1 × PS/2 mouse, 1 × PS/2 keyboard interface
Plate type
Main board type Micro ATX board type
Overall dimension 22.86 × 18.28cm
