KAVAKI Green 5.0-12 Tires 250cc Zongshen Engine Gasoline Five Wheel Motor Tricycle
Inhouse product
Army Green 5.0-12 Tires 250cc Zongshen Engine
Gasoline Five Wheel Motor Tricycle
Product Description

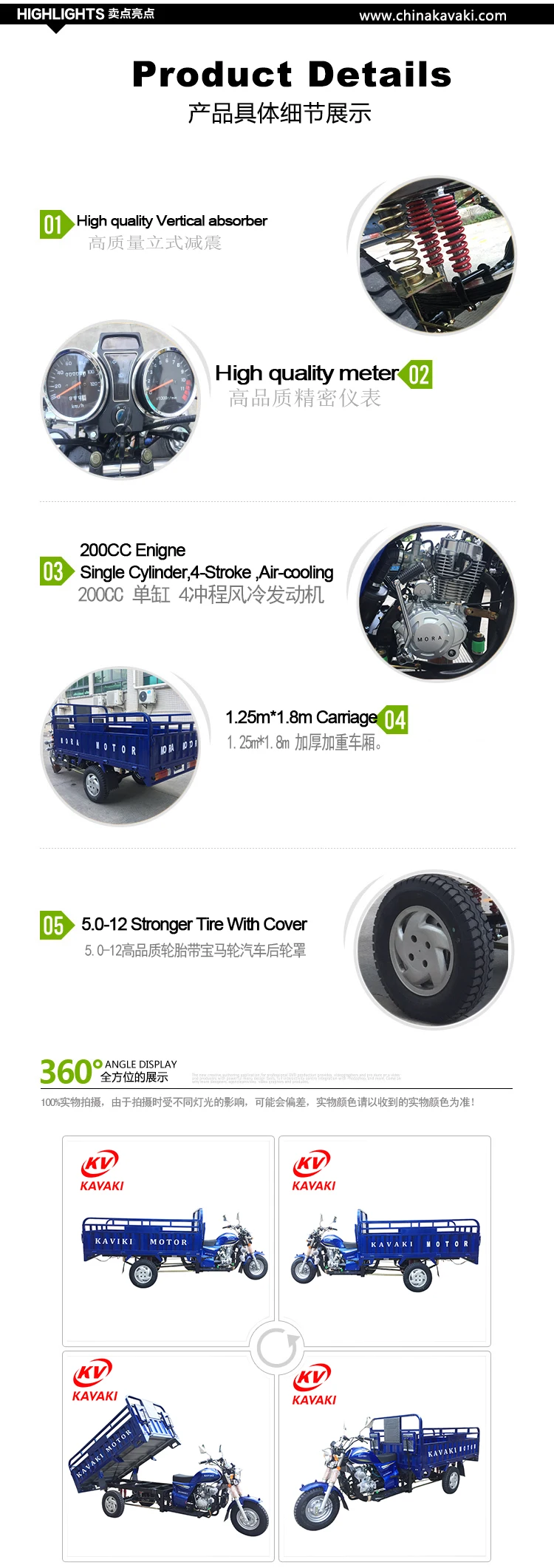

1. Details Pictures of 250cc Tricycle
2. Standard Technical Specification of 250cc Tricycle
| Product | 250cc Tricycle |
| Category | Tricycle |
| Usage | Cargo Transportation |
| Brand Name | KAVAKI MOTOR |
| Model | KV200ZH-C |
| L*W*H (mm) | 3150*1200*1300 |
| Carriage Size (W*L) | 1.2*1.8 m |
| Engine Type | 162FMJ, 4-stroke, Air-cooled |
| Engine Displacement (Cc) | 150 |
| Economical Consumption Fuel (L/100Km) | 3.7 L |
| Number of Cylinder | Single Cylinder |
| Lgnition System | CDI |
| Clutch | Single Clutch |
| Starting Method | Electric Start/Kick Start |
| Brake System (Front/Rear) | Drum/Drum |
| Max Speed | 60 Km/h |
| Wheels Size (Front/Rear) | 5.0-12/5.0-12 |
| Type of Wheels | Iron |
| Fuel Tank Capacity | 18 L |
| Fuel Type | Gasoline |
| Type of Transmission | Sharft Drive, 5 Forward and 1 Reverse |
| Battery Type | 12V 9Ah |
| Max Power (Kw./rpm) | 12Kw/8000r/min |
| Lubrication Type | Pressure & Splash |
| Number of Seats | 1. For driver only |
| Max Loading Capacity | 800 Kgs |
| N.W. | 300 Kgs |
| G.W. | 320 Kgs |
| Color | Red/Yellow/Blue/White, Customized |
3. Main Features of Model KV150ZH-B: 250cc Tricycle
1. Most economical and pratical model. Loading 800Kgs.
More suitable for: Retails; Express; Carry heavy cargos, Farming use, etc.
2. Good appearance, good quality with reasonable price.
3. Changable accessories options to meet your real demand.
Name of Components
| (1) Front wheel assembly | (2) Front shock absorber | (3) Front fender |
| (4) Front reflector | (5) Front turn signal | (6) Head lamp |
| (7) Combined instruments | (8) Rearview mirror | (9) Left/Right handlebar |
| (10) Fuel tank | (11) Seat cushion | (12) Cargo container |
| (13) Laminated springs | (14) Rear wheel assembly | (15) Exhaust muffler |
| (16) Starting lever | (17) Vehicle frame | (18) Engine |
| (19) Rear braking pedal | (20) Air cleaner |
OEM Tricycle Available
1. Changable Configuration To Meet Different Demands. Price Will Be Changed.
| Engine |
1. Type: Air-cooled; Water-cooled 2. Displacement: 150cc; 175cc; 200cc; 250cc |
|
| Cargo box |
1. Size: 1.1*1.6m; 1.1*1.7m; 1.1*1.8m; 1.2*1.6m; 1.2*1.7m; 1.2*1.8m; 1.2*2.0m; 2. Normal carriage; Higher carriage; Thickness carriage |
|
| Rear axle |
Normal rear axle; Auto rear axle; Boosting rear axle(Complete / Seperate) |
|
| Tire size | 4.50-12; 5.0-12 |
|
|
Front shock absorber |
1. Aluminum | 43mm; 50mm |
| 2. Ironwork | Normal; Damping | |
| Steel spring type | 7 layer; 8 layer; 9 layer; 10 layer | |
| Additional parts |
(1) Front hood cover (2) Knee plate (3) MP3 (4) Front glasses fender (5) Spare tyre (6) Jack (7) Rear absorber (8) Tail light cover (9) Side seat (10) Rear canvas. Etc. |
|
2. Pictures of Changable Accessories For Reference
Tips: More changable accessories information pls contact Tiny at +86-15217691767
3. Pictures of Additional Accessories For Selection
Tips: More changable accessories information pls contact Tiny at +86-15217691767

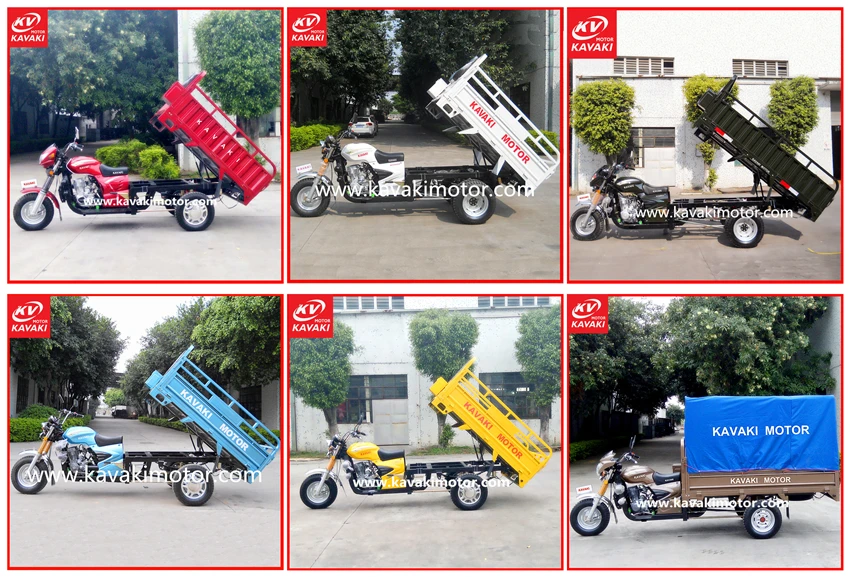

4. Same Model, Different Configuration & Color (Customized Tricycle)
Packing Method & Delivery
1. Packing Method of 250cc Tricycle
| Packing Methods | CKD, carton/sack packing |
| Container Loading | 18-20 pcs/20'GP, 45-60 pcs/40'HQ |
| Volume / Piece |
One piece is about 1.5CBM in CKD condition; Complete tricycle is about 5CBM |
2. Pictures of Delivery
KAVAKI Company Profile
1. KAVAKI Factory - U're warmly welcome to visit our factory!
2. KAVAKI Production Line
3. KAVAKI Qualitification Certificate
4. KAVAKI Catalog - Different model&performance For Selection
