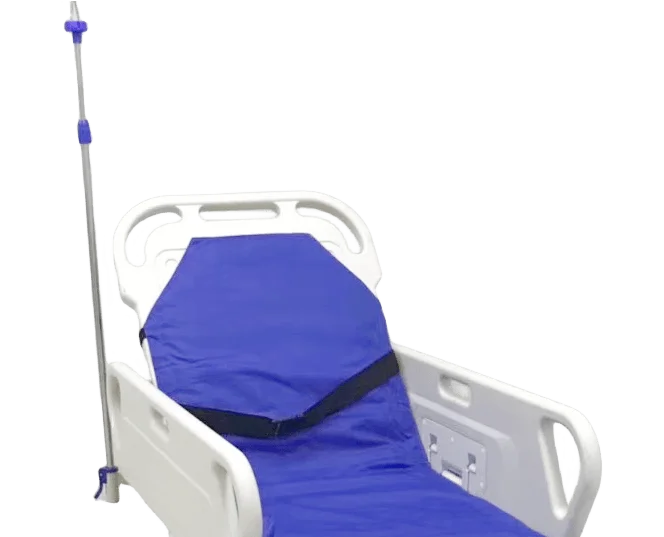

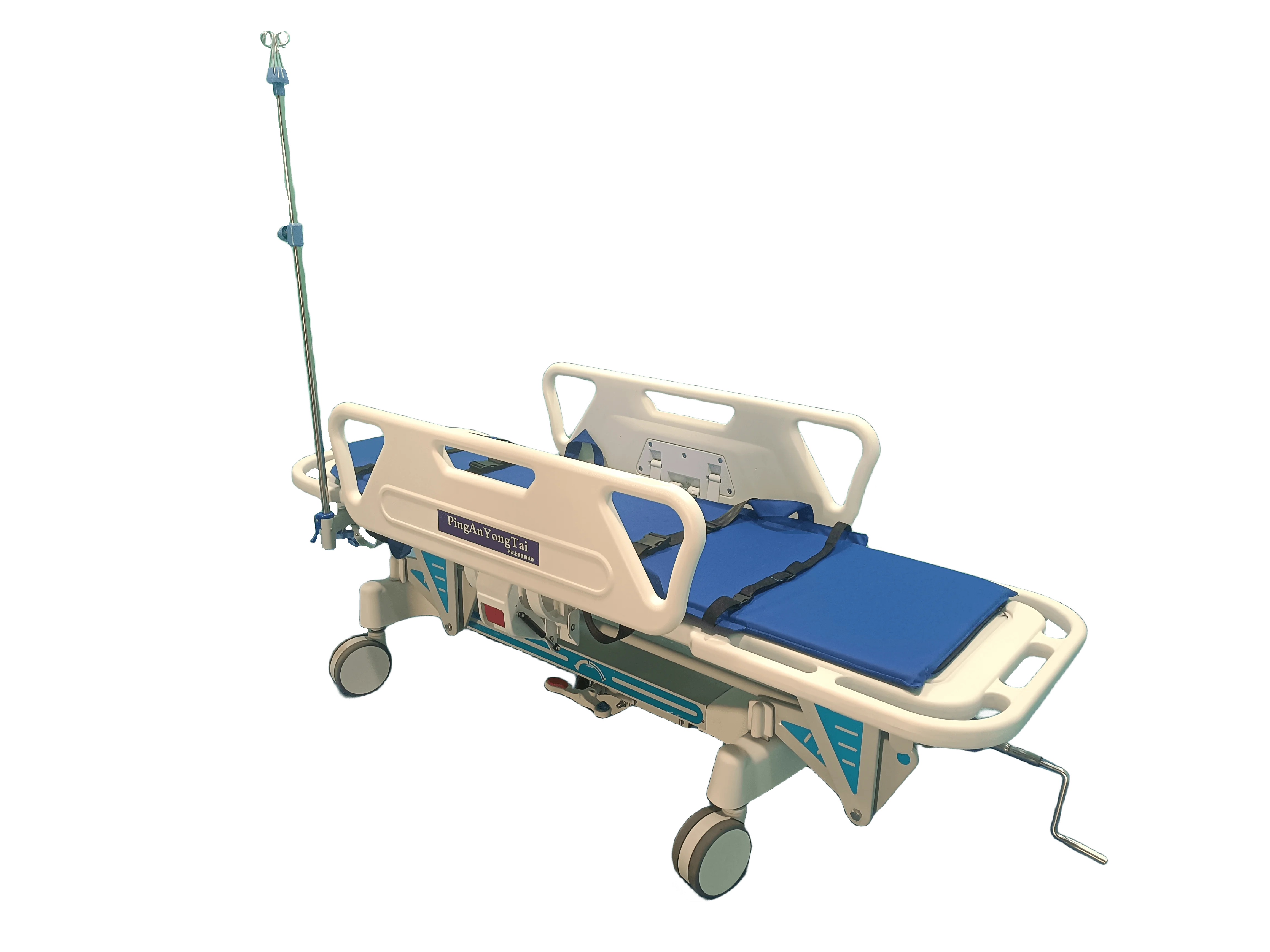

The transfer car is equipped with an infusion rack, and the multi-functional emergency vehicle is convenient to operate
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
$366.00
/pc
Refund:
Share:
Top Selling Products
Technical parameters
Size：1930×750×540-840（mm）
一、Product Introduction
1．Product Structure
This product is composed of a screw rod, two small guardrails, a bed top of ABS high-grade engineering plastic and four central control casters
2．Product Features:
1）The main frame structure of the flat car is extruded by international A380 carbon steel, which is beautiful and solid in appearance.
2）The flat car surface and guardrail are made of imported PE material at one time, which is solid and beautiful
3）The flat car surface is designed separately, and the upper body is made of high-quality damper as the support force source, which is easy to operate.
4）The flat rider crank (the screw is equipped with a clutch) adjusts the height of the vehicle.
5）The flat car adopts the international advanced central control braking system, which is stable and reliable. Equipped with universal and directional casters, it can be easily operated by one person.
6）The flat car can better meet your requirements in terms of overall design and manufacturing, and is more humane, which is an ideal choice for transporting patients in hospitals.

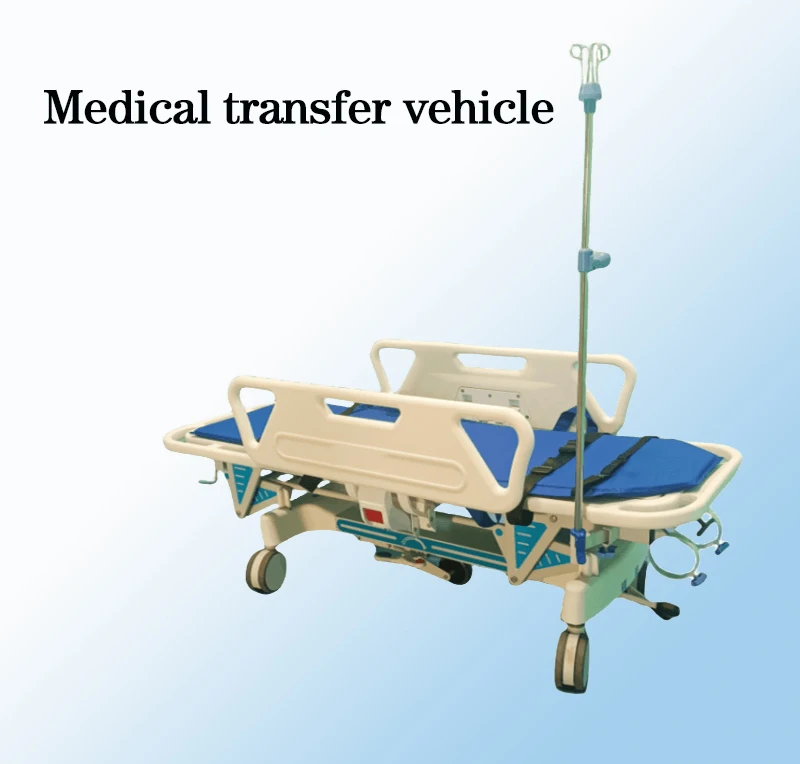

YT-ZYC Medical transfer cart | ||
Item | parameter | |
Dimension | Without guardrail：（1930×640)±10mm | |
With guardrail：（1930×750) ±10mm | ||
Height | Min：（540±20）mm | |
Max：（840±20）mm | ||
Lifting stroke | （300±20）mm（manual） | |
Backboard up | 50°±5°（manual） | |
Caster locking method | Central brakes | |
Net weight | 60~70kg | |
Max load | 200kg | |
Transportation and storage environment requirements | ||
Item | Parameter | |
Temperature range | -15℃~60℃（5°F~158°F) | |
Humidity range(non-condensing) | 10%~90% | |
Barometric pressure range | 500hPa~1060hPa | |
Operating environment requirements | ||
Temperature range | 10℃~40℃（50°F~104°F) | |
Humidity range(non-condensing) | 10%~90% | |
Barometric pressure range | 500hPa~1060hPa | |
Lift type guardrail
The guardrail adopts ABS lifting and lifting type guardrail, and the gas spring buffer design is used to improve the comfort and the service life of the guardrail

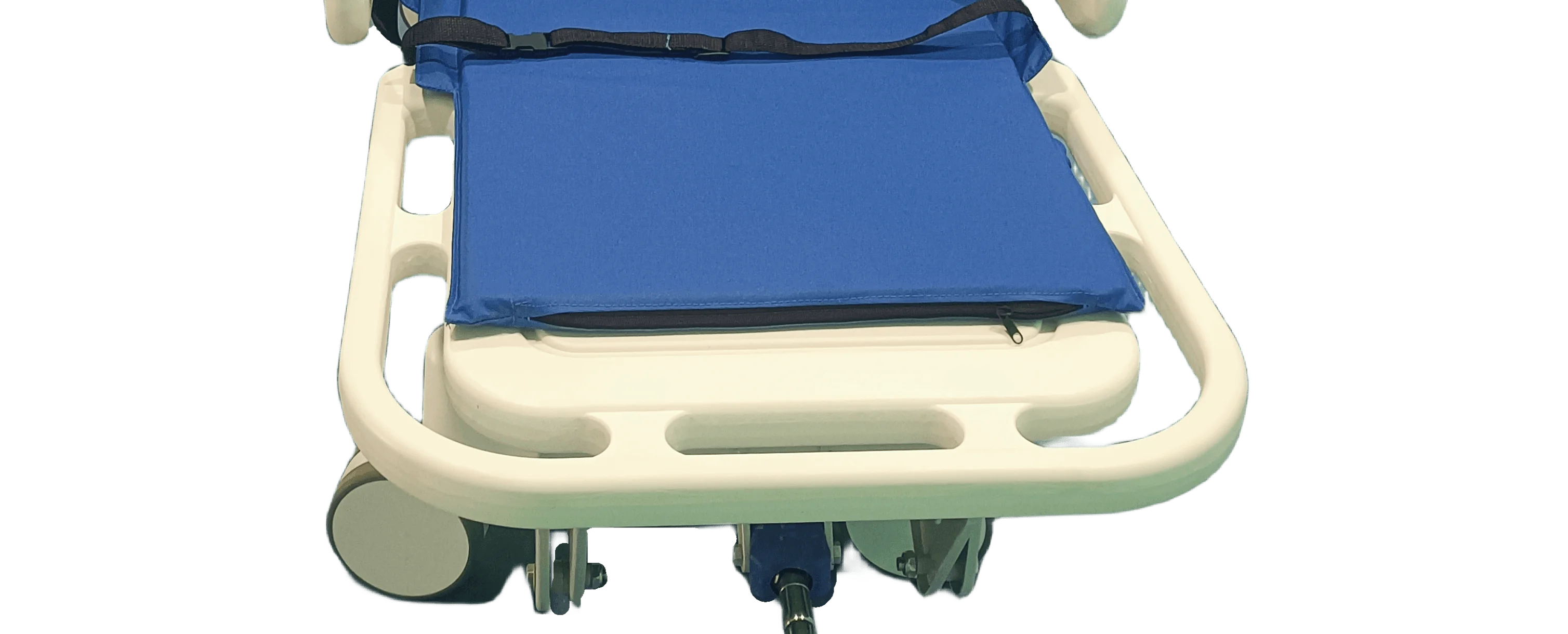

Preferred material
The car surface is made of ABS engineering injection plastic once casting molding, which has the characteristics of high flame retardant, corrosion resistance and toughness

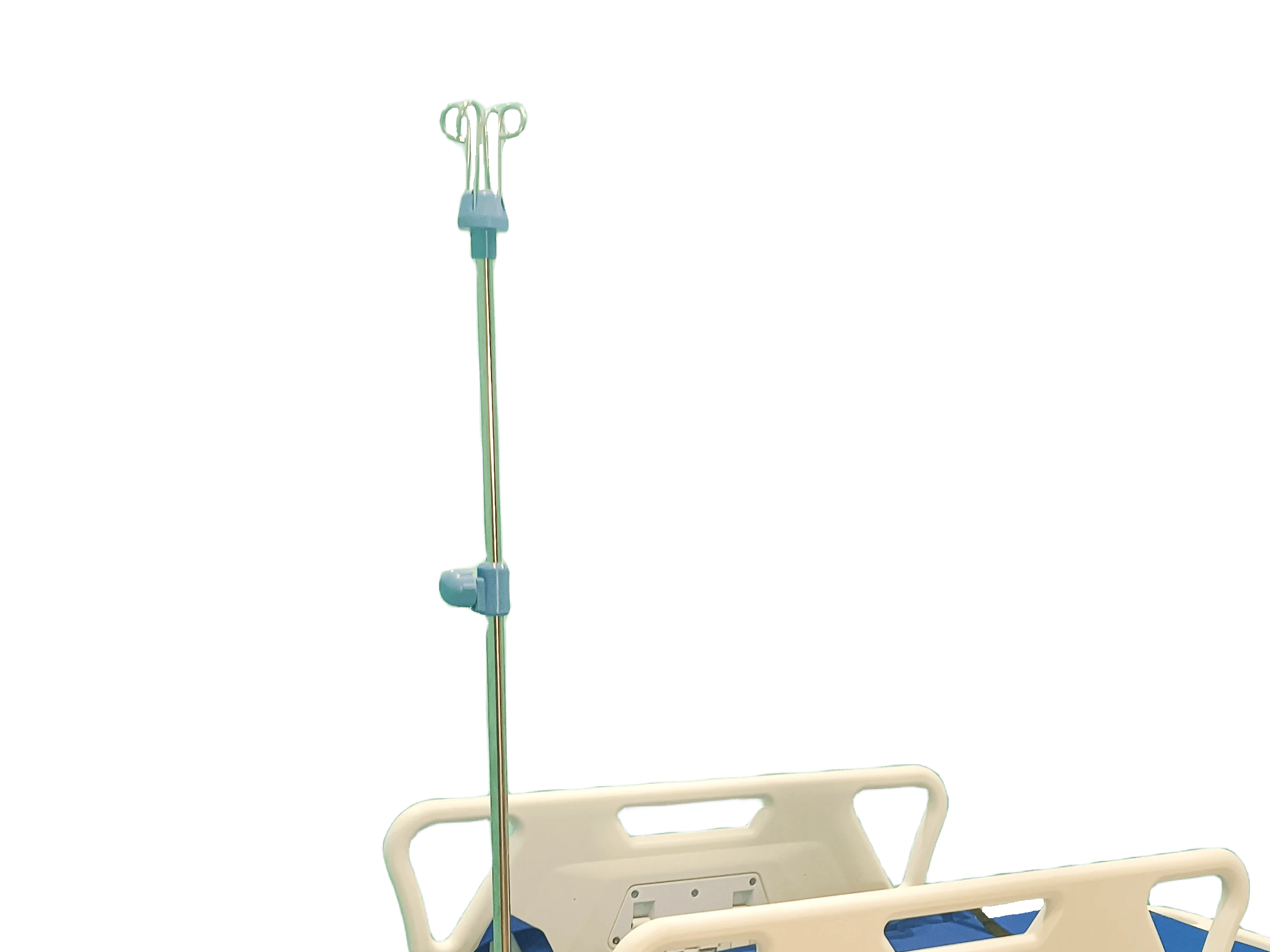

Infusion support
The front car tail has a diagonal infusion rack jack and an infusion rack to facilitate the infusion of patients

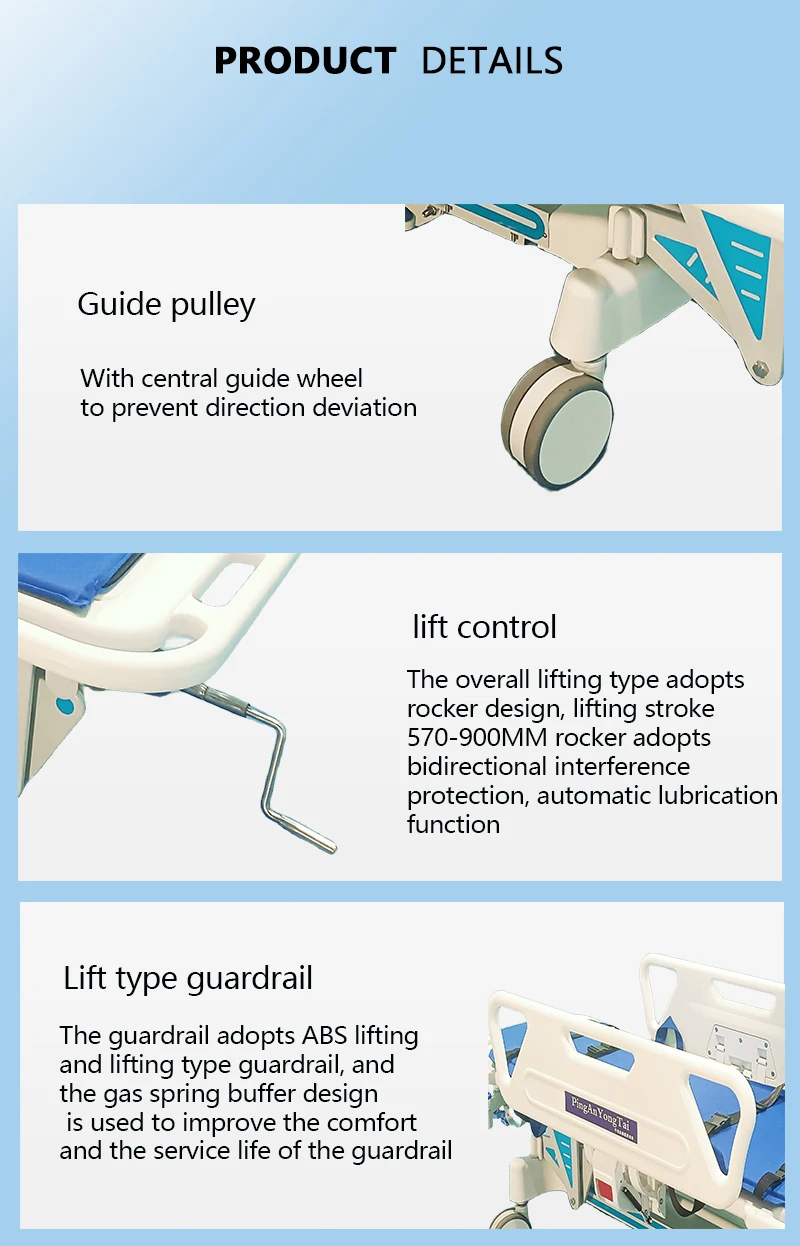

Guide pulley
With central guide wheel to prevent direction deviation

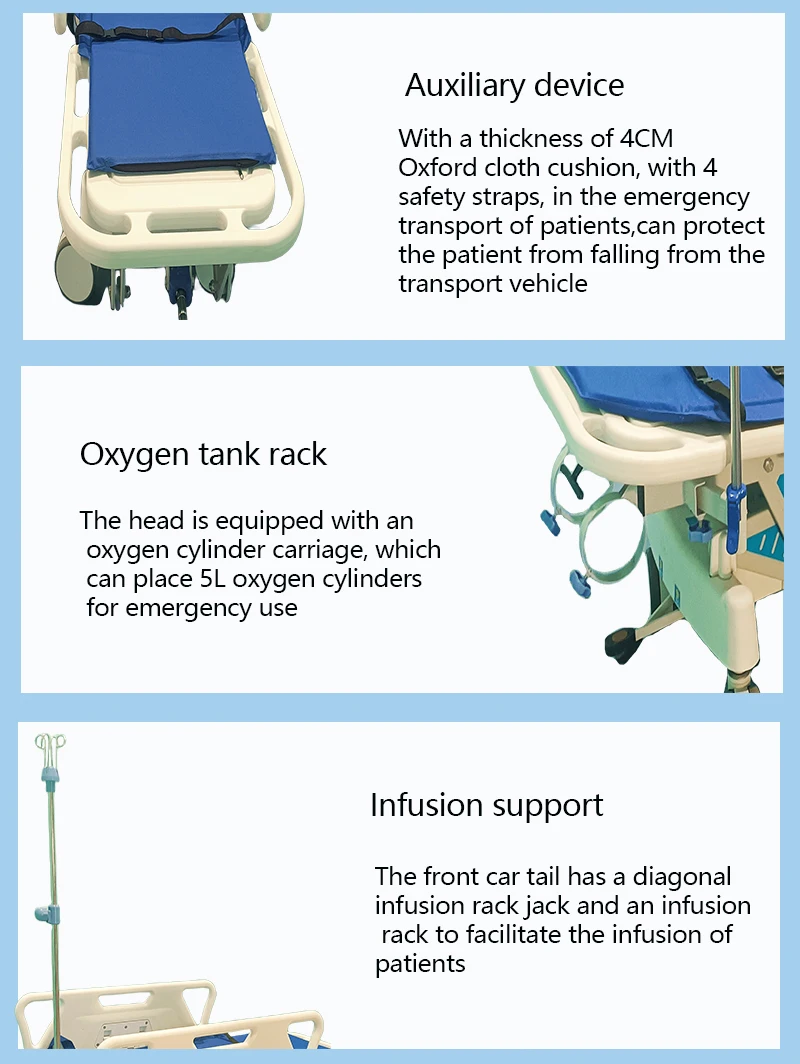

Auxiliary device
With a thickness of 4CM
Oxford cloth cushion, with 4 safety straps, in the emergency transport of patients, can protect the patient from falling from the transport vehicle

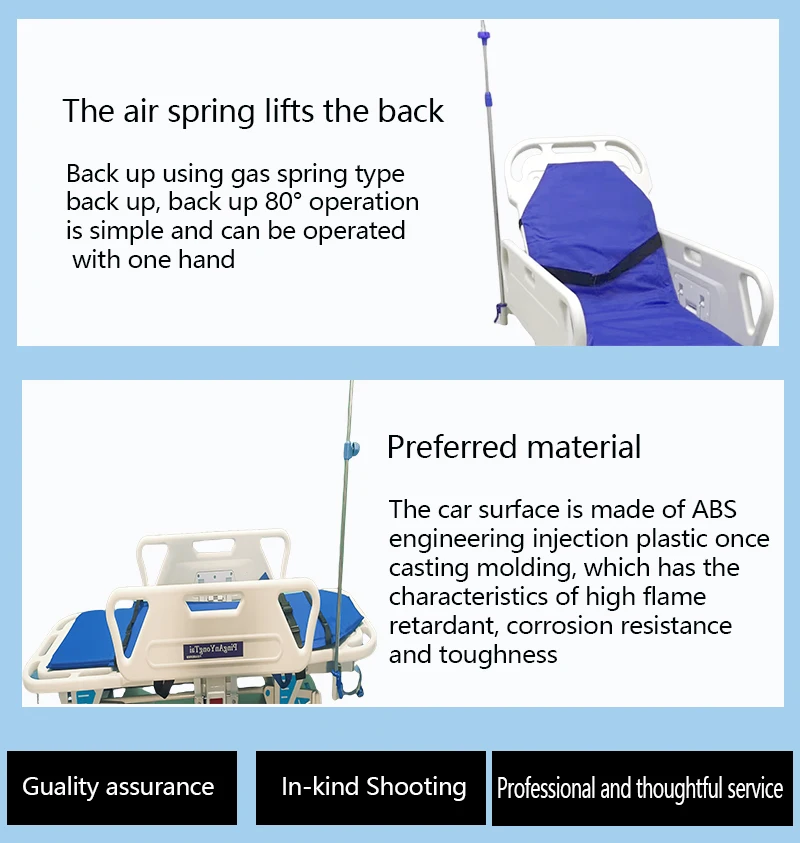

The air spring lifts the back
Back up using gas spring type back up, back up 80° operation is simple and can be operated with one hand
Oxygen tank rack
The head is equipped with an oxygen cylinder carriage, which can place 5L oxygen cylinders for emergency use
lift control
The overall lifting type adopts rocker design, lifting stroke570-900MM rocker adopts bidirectional interference protection, automatic lubrication
function
