Multifunction 3 In 1 Woodworking Doweling Jig Kit Hole Puncher Pocket Hole Jig Drill Guide Locator Furniture Connecting DIY Tool
(0
reviews)
Sold by:
Inhouse product
Inhouse product
Price:
$2,328.57
/pc
Refund:
Share:
Top Selling Products
Parameter Information:
Product name: Three-in-one locator
Clamping range: 0-52mm
Product material: 6061 aluminum
Scale mark: laser engraving
Surface treatment: anodized/black
Product use: woodworking positioning punch
Product guide (as shown below):
1. Punch the round dowel and connecting rod, and adjust the half of the plate thickness by the drill sleeve
Adjust to 8mm position
2. Adjusting wheel drill sleeve: minus the length of the threaded part
Adjust to the 32mm position and lock the brass nut
3. A plate round dowel and connecting piece punching
Align the edge of the board, and use an 8mm drill bit to drill holes in sequence
4. Use a 15mm drill bit to drill the eccentric hole
5. B board punching and jigsaw steps
Also take half the thickness of the board and draw the reference auxiliary line
Align the two boards, the alignment line of the notch of the dowel locator
6. The middle puzzle is similarly aligned with auxiliary lines for punching
Install the dowels and connectors
Before splicing the A board, tap it tightly with a rubber hammer
7. Press into the deflection wheel
Product name: Three-in-one locator
Clamping range: 0-52mm
Product material: 6061 aluminum
Scale mark: laser engraving
Surface treatment: anodized/black
Product use: woodworking positioning punch
Product guide (as shown below):
1. Punch the round dowel and connecting rod, and adjust the half of the plate thickness by the drill sleeve
Adjust to 8mm position
2. Adjusting wheel drill sleeve: minus the length of the threaded part
Adjust to the 32mm position and lock the brass nut
3. A plate round dowel and connecting piece punching
Align the edge of the board, and use an 8mm drill bit to drill holes in sequence
4. Use a 15mm drill bit to drill the eccentric hole
5. B board punching and jigsaw steps
Also take half the thickness of the board and draw the reference auxiliary line
Align the two boards, the alignment line of the notch of the dowel locator
6. The middle puzzle is similarly aligned with auxiliary lines for punching
Install the dowels and connectors
Before splicing the A board, tap it tightly with a rubber hammer
7. Press into the deflection wheel

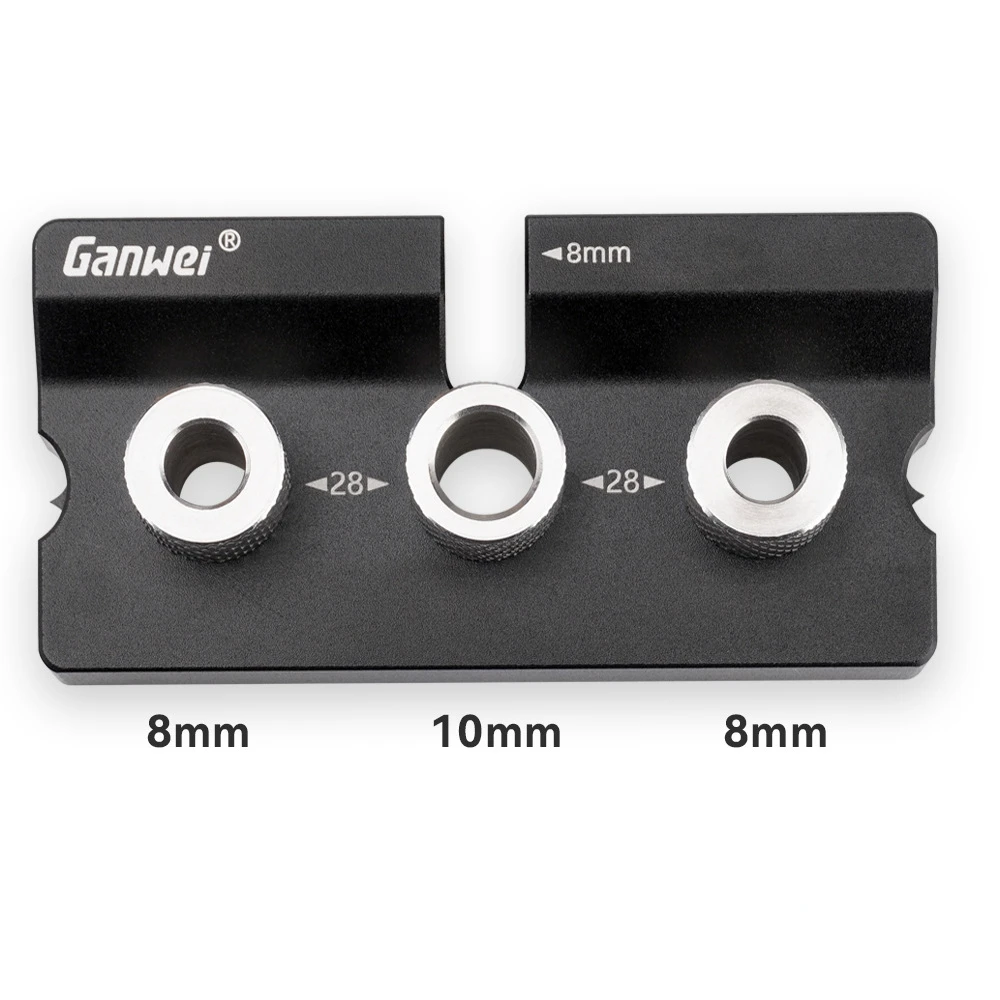

8/15mm Metal bushings accurate alignment when drilling hole,easy to adjusting drilling height and hole depth
Can be used for woodworking,Quick Positioning for different thickness, easy to producing joints.
